Henderson Nevada sits on a mix of alluvial fan deposits, lacustrine silts, and gravelly sands from the Lake Mead basin. The water table lies deep, often exceeding 50 meters, which makes soil behavior highly dependent on compaction and cementation. To evaluate bearing capacity and liquefaction potential under IBC seismic loads, engineers rely on the Standard Penetration Test. This field method drives a split spoon sampler into the ground, recording blow counts as N-values. Those numbers feed directly into settlement analysis and foundation design. Before any large structure in Henderson Nevada, a proper SPT program reveals how the subsurface will respond to loading. The test aligns with ASTM D1586 procedures and is often paired with a calicatas exploratorias program for visual soil classification.
In Henderson Nevada, the SPT blow count often jumps from 10 to 50 within a single meter due to cemented gravel layers. That variability demands careful interpretation.
Scope of work in Henderson Nevada
Critical ground factors in Henderson Nevada
In Henderson Nevada, many times we see contractors assume uniform soil conditions based on a single boring. That is a mistake. The alluvial fans here produce rapid lateral changes — gravel lenses, caliche layers, and buried channels. An SPT program with too few borings misses those variations, leading to differential settlement under slab foundations. For a commercial strip mall on East Lake Mead Parkway, we found N-values ranging from 8 in silty sand to refusal in cemented gravel just 10 meters apart. Without the SPT data, the foundation would have been under-designed in the soft zones. The risk is real, and it is avoidable with adequate sampling density.
Our services
Our SPT service in Henderson Nevada covers the full workflow: mobilization, drilling, sampling, field recording, and laboratory follow-up. We also offer complementary testing to build a complete geotechnical picture.
SPT Drilling with Hollow Stem Auger

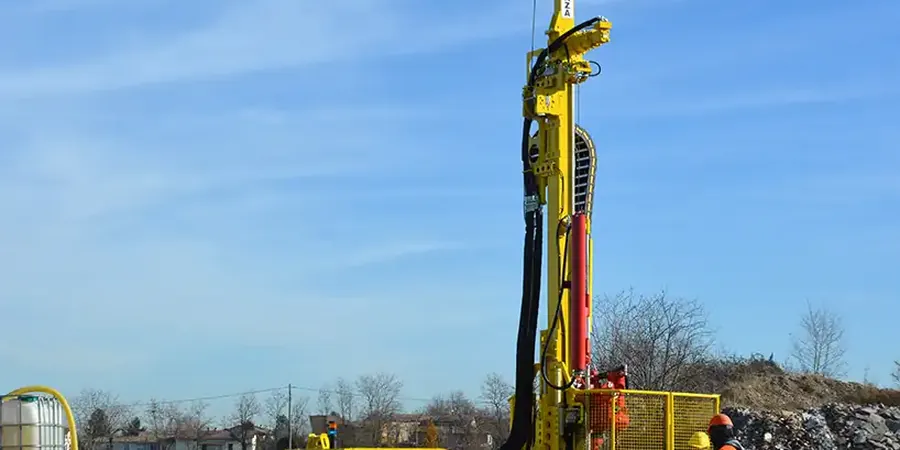

We use track-mounted or truck-mounted rigs to advance hollow stem augers to target depth. The SPT hammer drops automatically, ensuring consistent energy delivery per ASTM D1586. Samples are retrieved and sealed immediately.
N-Value Interpretation and Corrections
Raw blow counts are corrected for overburden pressure, hammer efficiency, and rod length. The corrected N60 value is used for bearing capacity and liquefaction analysis. We provide a full report with charts.
SPT Sampling with Split Spoon Retention
Every SPT hammer blow drives the split spoon into virgin soil. The retrieved sample is logged for visual classification, moisture content, and grain size. We store samples in airtight jars for later laboratory testing.
Seismic SPT (SPT-VS) Correlation
We correlate N-values with vs30/" data-interlink="1">shear wave velocity using established relationships (Seed & Idriss, Ohta & Goto). This allows estimation of site class (A through F) without separate geophysical testing. Useful for fast seismic assessments.
Frequently asked questions
How deep should SPT borings go in Henderson Nevada?
For typical residential and light commercial projects, borings go to 15 meters or until refusal in cemented gravel. Deeper borings (25 to 30 meters) are recommended for multi-story buildings or when liquefaction analysis is required. The depth must reach below all compressible layers.
What is the difference between N-value and corrected N60?
The N-value is the raw blow count recorded in the field. The corrected N60 adjusts for hammer energy efficiency (typically 60% to 80% for automatic hammers), rod length, and overburden pressure. Corrected values are used in design correlations for bearing capacity and liquefaction.
Can SPT detect cemented layers (caliche) in Henderson Nevada?
Yes. Caliche layers are common in Henderson Nevada. When the hammer meets a cemented zone, blow counts jump sharply, often exceeding 50 blows per 300 mm. The driller may stop advancing. The split spoon sample usually shows white carbonate cement. Identifying these layers is critical for excavation planning.
How much does an SPT test cost in Henderson Nevada?
The typical range for a single SPT boring with sampling and basic reporting is between US$520 and US$850, depending on depth, access, and number of samples. Volume discounts apply for multiple borings on the same site. Contact us for a detailed quote based on your project scope.
Is SPT required for all building permits in Henderson Nevada?
Not for every permit, but the IBC 2021 requires a geotechnical investigation for structures with seismic design category C, D, E, or F. Most commercial and multi-family buildings fall into these categories. The SPT is the standard method to classify site class and determine bearing capacity. Check with the City of Henderson Building Division for specific requirements.
